| Brand Name: | hanniu laser |
| Model Number: | K1390 |
| MOQ: | 1 |
| Price: | ¥22000 |
| Packaging Details: | Wooden Cases |
| Payment Terms: | T/T |

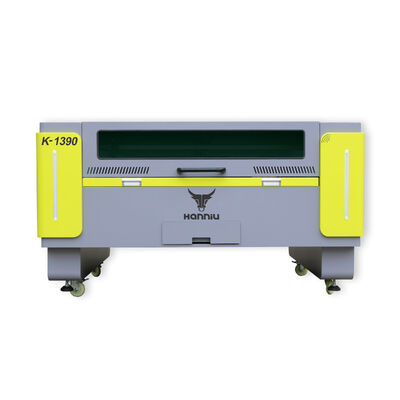

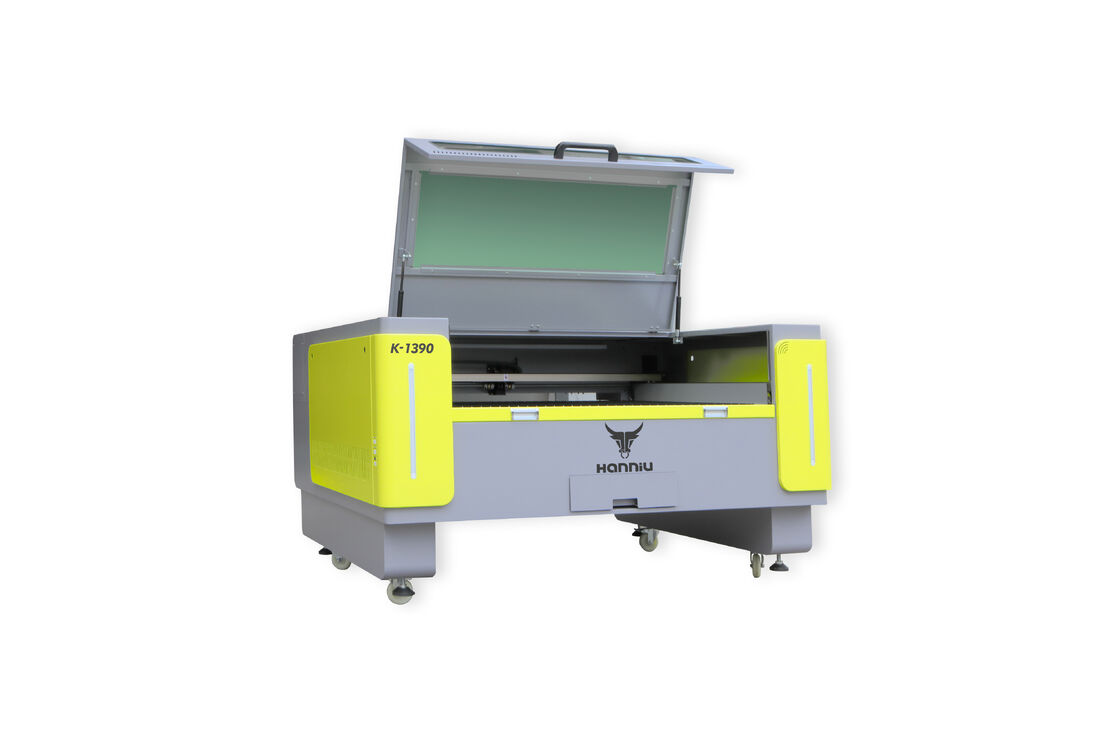

The Hanniulaser K1390 CO2 Laser Cutting Machine is a high-precision industrial laser solution designed for non-metal material cutting and engraving applications. Equipped with an 80W-100W CO2 laser tube, 3-axis motion control system, and water-cooling technology, the machine delivers stable high-speed processing performance for acrylic, wood, MDF, leather, fabric, paper, and advertising materials. The machine supports cutting thickness from 0-20mm with repeat positioning accuracy up to ±0.05mm, making it suitable for commercial signage factories, craft manufacturers, packaging producers, and industrial customization workshops.
Compared with standard entry-level CO2 laser machines, the Hanniulaser K1390 offers a larger working area, stronger cutting capability, and higher operational stability. The integrated water-cooling system effectively controls tube temperature during long production cycles, helping extend laser tube lifespan and maintain consistent cutting precision. Industry comparisons show that industrial 80W-100W CO2 laser systems can improve production efficiency by up to 200% compared with lower-power engraving models.
| Parameter | Specification |
|---|---|
| Product Name | Hanniulaser CO2 Laser Cutting Machine |
| Model | K1390 |
| Laser Power | 80W / 100W |
| Laser Type | Sealed CO2 Laser Tube |
| Cooling Method | Water Cooling System |
| Motion Control | 3-Axis CNC Control |
| Working Area | 1300 × 900 mm |
| Laser Wavelength | 10.6μm |
| Engraving Speed | 0–64,000 mm/min |
| Max Cutting Speed | 0–48,000 mm/min |
| Cutting Thickness | 0–20 mm |
| Repeat Positioning Accuracy | ±0.01 mm |
| Resolution Ratio | 0.025 mm |
| Minimum Character Size | Chinese Character 2mm / English Letter 1mm |
| Transmission System | Linear Guide Rail |
| Working Table | Honeycomb Table / Blade Table |
| Supported Graphic Formats | BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DWG, DXF |
| Compatible Software | CorelDRAW, AutoCAD, RD CAM |
| Driver Type | Stepper Motor |
| Power Supply | AC220V ±10%, 50/60Hz |
| Gross Power | 1100W–2600W |
| Operating Temperature | 0–45℃ |
| Operating Humidity | 5%–95% |
| Machine Dimension | Approx. 1900 × 1530 × 1100 mm |
| Net Weight | 250–450 KG |
| Optional Accessories | Rotary Device, CW5000 Water Chiller, Double Laser Head |
| Applicable Materials | Acrylic, MDF, Wood, Leather, Fabric, Paper, Rubber, Bamboo |
| Applicable Industries | Advertising, Packaging, Craft Manufacturing, Furniture, Garment, Decoration |
| Model Type | 60W Entry Model | Hanniulaser 80W-100W | Industrial 150W Model |
|---|---|---|---|
| Cutting Thickness | 0-8mm | 0-20mm | 0-30mm |
| Working Speed | Medium | High | Very High |
| Engraving Precision | Good | Excellent | Excellent |
| Cooling Method | Basic Water Pump | Industrial Water Cooling | Chiller Cooling |
| Application Range | Small Crafts | Commercial Production | Heavy Industrial |
| Recommended Users | Hobby & Small Shops | B2B Manufacturers | Large Factories |
| Cost Performance | Economical | Best Balance | High Investment |
The 80W-100W configuration is considered the optimal balance between engraving precision and cutting power. According to laser cutting community discussions, 80W systems perform better for detailed engraving, while 100W systems provide faster thick-material cutting and higher productivity for commercial production environments.
| Test Material | Thickness | Laser Power | Cutting Speed | Result |
|---|---|---|---|---|
| Acrylic Sheet | 10mm | 100W | 15-20mm/s | Smooth Edge |
| MDF Board | 6mm | 80W | 20-25mm/s | No Burr |
| Plywood | 12mm | 100W | 10-15mm/s | Clean Cutting |
| Leather | 3mm | 80W | 30-40mm/s | Precision Engraving |
| Paper/Cardboard | 1mm | 80W | 50mm/s+ | High-Speed Processing |
The machine uses DSP control technology with linear guide rails and supports engraving speeds up to 64,000mm/min under optimized conditions. Water-cooled operation helps maintain stable beam quality during continuous industrial use, reducing overheating risks and improving operational reliability.
The machine is designed for non-metal material cutting and engraving, including:
Acrylic
MDF
Wood
Leather
Fabric
Rubber
Bamboo
Paper and cardboard
It is especially suitable for advertising signs, decorative crafts, packaging prototypes, and customized industrial products. The focused CO2 laser beam provides smooth cutting edges and detailed engraving performance on most organic materials.
The 80W model is generally preferred for fine engraving and detailed pattern processing, while the 100W configuration offers stronger cutting capability and faster production efficiency for thicker materials.
| Configuration | Main Advantage | Recommended Application |
|---|---|---|
| 80W | Higher engraving precision | Crafts, logos, decorative engraving |
| 100W | Faster thick-material cutting | Acrylic, MDF, mass production |
Many laser processing users choose 100W systems for commercial workshops because higher power can improve cutting speed and production output while still supporting engraving functions.
The Hanniulaser K1390 supports cutting thickness from 0-20mm depending on material type, laser power, and cutting speed settings.
Typical cutting references include:
Acrylic: up to 20mm
MDF/Plywood: 6-12mm
Leather/Fabric: 1-4mm
Paper/Cardboard: high-speed thin material cutting
Actual performance may vary based on material density and processing parameters. Industrial users often optimize speed and power settings to achieve cleaner cutting edges and reduce burning.
The integrated water-cooling system helps maintain stable laser tube temperature during continuous operation. This provides several advantages:
More stable laser output
Improved cutting consistency
Reduced overheating risks
Longer laser tube lifespan
Better performance during long production cycles
Compared with basic cooling systems, industrial water cooling is more suitable for B2B manufacturing environments that require continuous daily operation.
The Hanniulaser K1390 is suitable for both medium-scale workshops and commercial industrial production. Its 1300×900mm working area, high-speed motion system, and CNC control technology allow manufacturers to handle customized orders and batch production efficiently.
Common application industries include:
Advertising sign production
Acrylic display manufacturing
Furniture decoration
Packaging sample cutting
Leather product processing
Craft and gift manufacturing
For businesses requiring a balance between precision engraving and high-speed cutting, 80W-100W CO2 laser systems are widely considered one of the most cost-effective industrial laser solutions.
|
