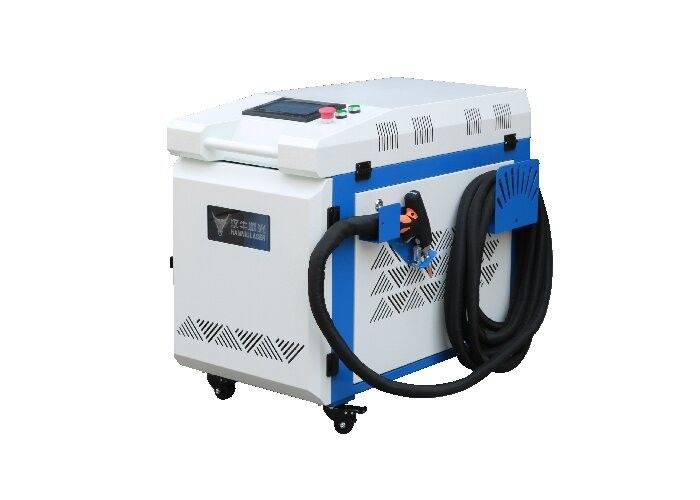

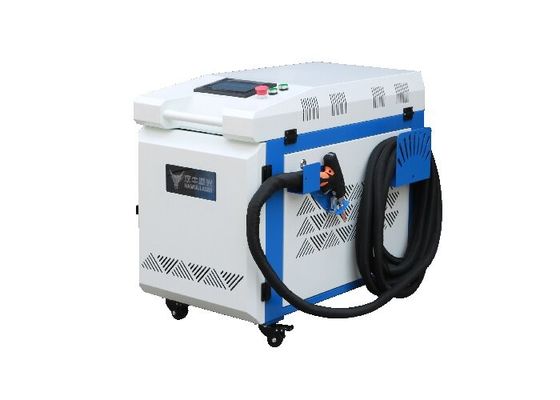

Metal SUS304 1500w 2000w 3000w Handheld Four In One

Fiber Laser Welding Machine

Specification form of this laser welding machine

Model	TFZ-S-1500W
Laser power	1500w/2000w/3000w
Cooling method	Water cooling
Laser wavelength	1070nm
Welding depth	SS/CS≤3.5mm, Al≤2mm
Pulse width	Continuous light
Welding depth	≤1.2mm
Repeat precision	±0.01mm
Power consumption	≤7KW
Power supply	380v±10%/50Hz/30A
Length of fiber optical	8m
Interface of fiber optical	QBH
Module life	>1000000hrs
Size	1450*680*1470mm
Net weight	155KG

Main feature

1. This machine uses 500-1500 watt laser, high electro-optical conversion efficiency, long laser life.

2. Maintenance-free,no adjustment, low energy comsuption, no consumable, long-term use can save users alot of processing costs.

3. Volume: compact size,compact structure, built-in water cooling, flexible hand-held welding, outdoor welding.

4. With 10 meters of fiber,it can weld at any angle to complex large irregular workpieces.

5. Better beam quality for fiber transmission, more uniform solder joints and better penetration.

Detail pictures of laser welding machine

Single molding, not easy to deform, no need to polish, meet various angles and positions of welding.

The laser welding depth is big, the welding is firm; It is not easy to deform,

and solves the problems of penetration welding, welding quality and so on.

Get rid of the traditional manual wire feeding is not convenient, accuracy is poor,

wire feeding is not stable, the finished product is not considtent.

The advantage of wire feeding welding is to weld 0.8-1mm plates, reducing the workpiece weight.

It is not easy to deform and needs no polishing.

It solves the problems of welding penetation and welding quality caused by argon arc welding.

The welding speed is fast, 2-10 times faster than traditional welding.

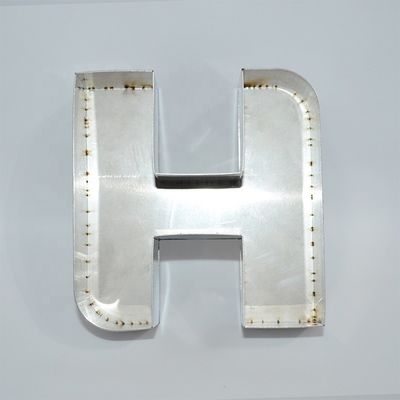

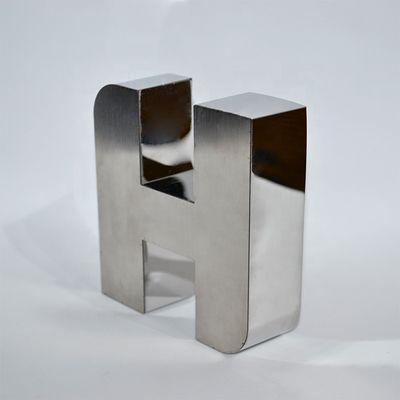

Sample of the laser welding machine

Company Strength

Exhibition

Packaging & Shipping

1.Standard plywood case, no need to steam, can export directly.

2. car-lift machine up and down loading. more safe for machine.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment.

FQA

1.Q: Are you a factory or trading company?

A:We are a professional manufacturer specializing in laser for about 10 years with export license.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.

3.Q: Can you do OEM?

A: Yes, we can do OEM products as you requested.

4.Q: Where will the machines be shipped from?

A: It will be shipped from Huangpu Port Guangzhou,China. And We will find the shipping company which will offer best and most economical freight for our customers. But If you have a preferred carrier,that will be more helpful for us.

5.Q:How does your factory do regarding quality control?

A:Quality is priority,we always attach great importance to quality control from the very beginning to the very end:

   1)All raw material we used are environmental-friendly;

   2)Skillful workers care every details in handling the producing and packing processes;

   3)Quality Control Department is specially responsible for quality checking in each process.

6.Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?

A: We are legitimate certification company (VIP), and we support payment terms Like L/C,Escrow to ensure your money safety.And we welcome you to visit our factory.

7.Q:There are too many models, I don't know which one to choose?

A: Welcome to contact us through Trade Manager,we will recommend most suitable machine according to your specific requirements.

8.Q:How to ensure that I received the machine undamaged?

A: Our package is standard for shipping, before packing,we will confirm product undamaged, otherwise, please contact us within 2 days. Because we've bought insurance for you, we or shipping company will be responsible!
