Machine model	SCH-3000W
Laser power	3000w
Laser model	fiber laser
Output power	3000w
Laser wavelength	1070nm
Welding depth	Stainless steel,/carbon steel≤5mm aluminum ≤4mm
Pulse width	Continuous light
Welding depth	≤1.2mm
Repeat precision	±0.01mm
Cooling style	Water cooling
Power consumption	6KW
Power supply	220V±10%/50HZ/30A
Length of fiber-optical	8m
Interface of fiber-optical	QBH
Module life	>100000hrs

Main feature

1 This machine uses 500-1500 watt laser, high electro-optical conversion efficiency, long laser life.

2 Maintenance-free,no adjustment, low energy comsuption, no consumable, long-term use can save users alot of processing costs.

3 Volume: compact size,compact structure, built-in water cooling, flexible hand-held welding, outdoor welding.

4 With 10 meters of fiber,it can weld at any angle to complex large irregular workpieces.

5 Better beam quality for fiber transmission, more uniform solder joints and better penetration.

Detail pictures of laser welding machine

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine 0

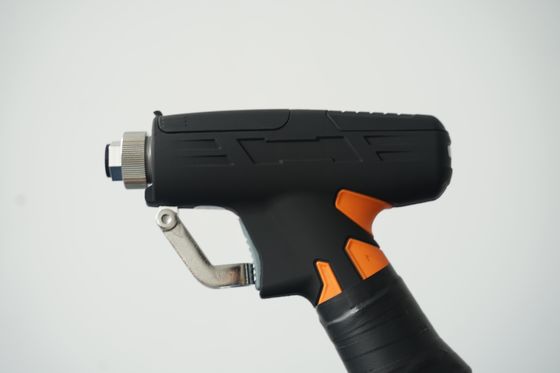

Single molding, not easy to deform, no need to polish, meet various angles and positions of welding.

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine 1

With hand-held lasser welding to help you welding more simple, fast, easy to operate Suggestions,

break through the limitations of the work table.

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine 2

The laser welding depth is big, the welding is firm;

It is not easy to deform, and solves the problems of penetration welding, welding quality and so on.

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine 3

Get rid of the traditional manual wire feeding is not convenient, accuracy is poor,

wire feeding is not stable, the finished product is not considtent.

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine 4

The advantage of wire feeding welding is to weld 0.8-1mm plates, reducing the workpiece weight.

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine 5

It is not esy to deform and needs no polishing.

It solves the problems of welding penetation and welding quality caused by argon arc welding.

The welding speed is fast, 2-10 times faster than traditional welding.

Samples of the laser welding machine

Company Strength

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine 7

Exhibition

Packaging & Shipping

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine 10

1.Standard plywood case, no need to steam, can export directly.

2. car-lift machine up and down loading. more safe for machine.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment.

Tags:

Fiber Laser Welder Machine

Precision Laser Welding Machine

Laser Welding Cleaning Machine

Products Details

Home > Products >

Fiber Laser Welding Machine

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine

All Category

CO2 Laser Cutting Machine

Acrylic Laser Cutting Machine

Fiber Laser Cutting Machine

Fiber Laser Welding Machine

Fiber Laser Marking Machine

CO2 Laser Marking Machine

UV Laser Marking Machine

Enclosed Laser Cutting Machine

Pulse Laser Cleaning Machine

Portable Laser Marking Machine

Automatic Feeding Laser Cutting Machine

YAG Laser Welding Machine

Laser Pipe Cutting Machine

Four In One Handheld Fibre Laser Welding Machine 3mm-6mm SS Laser Welding Machine

Brand Name:	Hanniu laser
Model Number:	SCH
MOQ:	1 SET
Price:	US$2,600-5,500
Packaging Details:	Strong wooden case packing
Payment Terms:	TT/LC/

Detail Information

Product Description

Detail Information

Brand Name:

Hanniu laser

Certification:

Model Number:

SCH

Gas:

Nirtrogen/Air

Welding Width:

0.8-6mm

Power:

3kw

Wire:

Single Wire Feeder

Cooler:

Water Cooling

Package Type:

Standard Plywood Case

Name:

Fibre Laser Welding Machine

Minimum Order Quantity:

1 SET

Price:

US$2,600-5,500

Packaging Details:

Strong wooden case packing

Delivery Time:

10 working days

Payment Terms:

TT/LC/

Supply Ability:

10 SETS
