CO2 Laser Cutting Machine
>

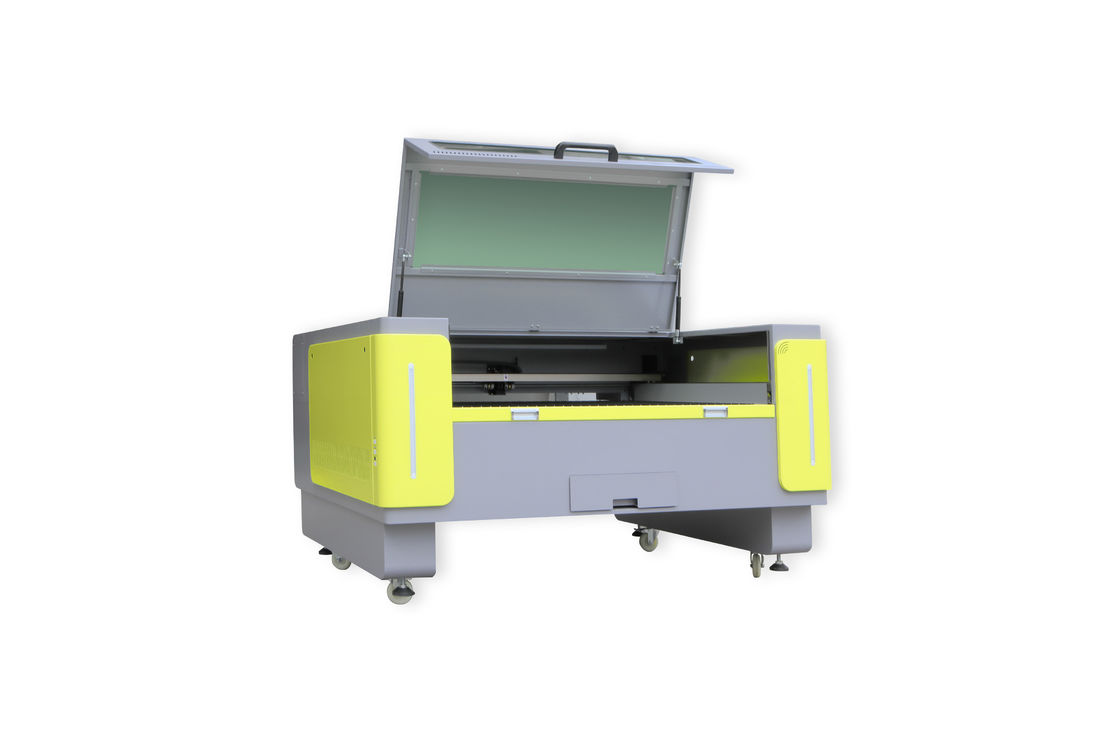

150W CO2 Laser Engraving Machine Step Motor Cut For Acrylic Leather Paper Wood

150W CO2 Laser Engraving Machine Step Motor Cut For Acrylic Leather Paper Wood

Brand Name: Hanniu Laser
Model Number: K1390
MOQ: 1 SET
Price: US$3,000-6,800
Packaging Details: Strong Wooden Case Packing
Payment Terms: TT/DP/LC
Detail Information
Certification:
CE
Name:
Leather Laser Engraving Machine
Repetitive Accuracy:
±0.01mm
Machine Type:
CO2 Laser Cutter
Control Software:
RUIDA
Cooling Mode:
Water Cooling
Core Components:
Step Motor
Laser Type:
CO2
Effective Working Area:
1300*900mm/1300*2500mm
Support Format:
PLT, DXF, BMP, AI
Supply Ability:
10 SETS
Highlight:

150W CO2 Laser Engraving Machine

,

Leather Laser Engraving Machine CO2

,

Wood Laser Engraving Machine CO2

Product Description

150W CO2 Laser Engraving Machine Step Motor Cut For Acrylic Leather Paper Wood

Laser cutting machine Working Principle



Laser cutting is a technology which uses a laser to cut materials, and is usually used in industrial manufacturing. Laser cutting works by directing the output of a high power laser at the material to be cut.

The material then either melts, burns or vaporizes away leaving an edge with a high quality surface finish.

Advantages of laser cutting over mechanical cutting include

lack of physical contact, precision, speed, reduced chance of warping the material that is being cut as laser systems have a small heat affected zone. Some materials are also very difficult or impossible to cut mechanically and only the selected laser is used.



Machine Specification

Specifications



Engraving Area 1300*900mm
Laser power 150w
Engraving speed 0-64000mm/min
Resolution 0.025mm
Minimum shaping character Chinese Character:2mm/Letter:1mm
Resetting Positioning accuracy ±0.01mm
Transmission Linear guide
Operating temperature 0-45°c
Operating humidity 5%-95%(free of condensed water)
Graphic format supported BMP.GIF.JPG.PCX.TGA.TIFF.PLT.CDR.DWG.DXF
Power supply AC220V±10%.50Hz/60Hz
Cooling method Water cooling
Gross power <1500w
Net weight 400KG
Dimension 1950mm*1600mm*1300mm
Max cutting thickness 25mm(acrylic), 1.5mm(stainless steel), 1.8mm( carbon steel)





Detail Parts



150W CO2 Laser Engraving Machine Step Motor Cut For Acrylic Leather Paper Wood 0

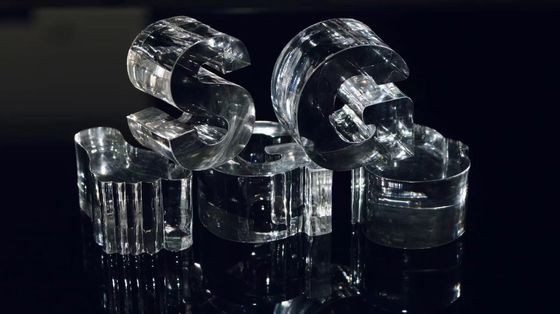

Sample Pictures





25mm laser machine





Company Information



 150W CO2 Laser Engraving Machine Step Motor Cut For Acrylic Leather Paper Wood 2







Packaging





paste-pic-dp_uuid_uhzic

1.Standard plywood case, no need to steam, can export directly.

2. car-lift machine up and down loading. more safe for machine.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment



Other Machines

 1390 (2)

FAQ:

1.Q: Are you a factory or trading company?

A:We are a professional manufacturer specializing in laser for about 10 years with export license.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.

3.Q: Can you do OEM?

A: Yes, we can do OEM products as you requested.

4.Q: Where will the machines be shipped from?

A: It will be shipped from Huangpu Port Guangzhou,China. And We will find the shipping company which will offer best and most economical freight for our customers. But If you have a preferred carrier,that will be more helpful for us.



5.Q:How does your factory do regarding quality control?

A:Quality is priority,we always attach great importance to quality control from the very beginning to the very end:

    1)All raw material we used are environmental-friendly;
    2)Skillful workers care every details in handling the producing and packing processes;

    3)Quality Control Department is specially responsible for quality checking in each process.





6.Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are legitimate certification company (VIP), and we support payment terms Like L/C,Escrow to ensure your money safety.And we welcome you to visit our factory.





7.Q:There are too many models, I don't know which one to choose?
A: Welcome to contact us through Trade Manager,we will recommend most suitable machine according to your specific requirements.

8.Q:How to ensure that I received the machine undamaged?
A: Our package is standard for shipping, before packing,we will confirm product undamaged, otherwise, please contact us within 2 days. Because we've bought insurance for you, we or shipping company will be responsible!
