AKC1325 CO2 Laser Cutting Machine Full Rack Cut For Acrylic Wood PVC Bamboo 150W 300W

Brand Name:	Hanniu Laser
Model Number:	AKC1325
MOQ:	1 SET
Price:	6751-8720USD
Packaging Details:	Strong wooden case packing
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, SGS

Port:

Guangzhou Or Shenzhen

Max Cutting Thickness:

<30mm Acrylic

Running System:

Best Step Motor

Rated Voltage:

AC 220 V ± 10% 50 HZ

Cooling Mode:

Water Cooling

Laser Source:

IPG Raycus Max JPT

Cooling Method:

Water Cooling

Supply Ability:

5 SETS

Product Description

AKC1325 CO2 Laser Cutting Machine Full Rack Cut For Acrylic Wood PVC Bamboo 150W 300W

Product description

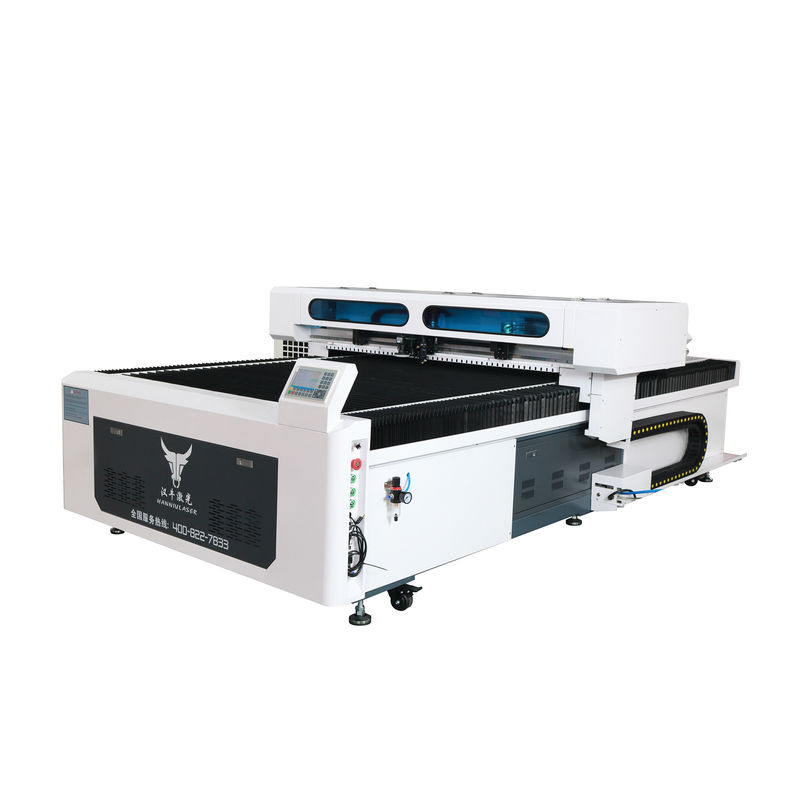

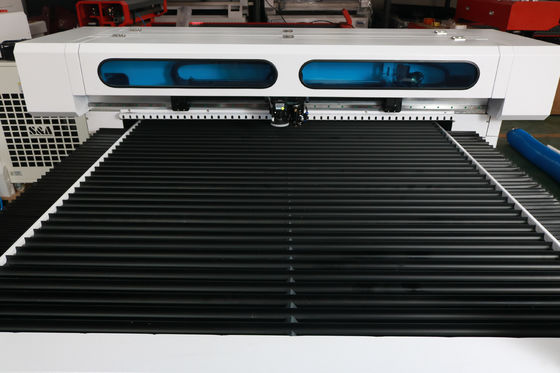

The working area of the Han Niu AKC1325 CO2 laser cutting machine is 1300x2500mm. It is suitable for cutting acrylic, leather, medium density fiberboard, paper, plastic, organic glass, and plywood. It features high precision with a resolution of ≤0.0125mm. The constant light system is stable in performance and adopts imported servo motors with full rack and pinion transmission. This machine supports multiple graphic formats (DXF, PLT, BMP, AI) and includes a water cooling system. Certified by CE, it ensures compliance with EU safety standards and provides market access.

Application Industry

It is mainly used in the advertising industry, sheet metal industry, packaging industry, billboards, art gifts, crystal jewelry, paper-cutting, bamboo and wood products, clothing and leather, embroidery, decoration and other industries

Applicable Materials

Double color sheet, acrylic, glass, wood, mdf, bamboo ware, coconut shells, paper, leather, cloth, marble, ceramic tile, shells and other nonmetal materials.

Machine parameter

Engraving Area	1300*2500mm
Laser power	150w
Engraving speed	0-64000mm/min
Resolution	0.025mm
Minimum shaping character	Chinese Character:2mm/Letter:1mm
Resetting Positioning accuracy	±0.01mm
Transmission	Screw rod transmission
Operating temperature	0-45°c
Operating humidity	5%-95%(free of condensed water)
Graphic format supported	BMP.GIF.JPG.PCX.TGA.TIFF.PLT.CDR.DWG.DXF
Power supply	AC220V±10%.50Hz/60Hz
Cooling method	Water cooling
Gross power	<1800w
Net weight	680KG
Dimension	1950mm3400mm1150mm
Max cutting thickness	30mm(for acrylic),1.8mm(for stainless steel)

Product details

Factory&Company

Certification

Packing&Shipping

Standard plywood case, no need to steam, can export directly.

car-lift machine up and down loading. more safe for machine.

when importing, the plywood case is with fumigation-free, the procedure is simple.

Delivery Detail: within 3-5 days after received your payment

1.Q: Are you a factory or trading company?

A:We are a professional manufacturer specializing in laser for about 10 years with export license.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.

3.Q: Can you do OEM?

A: Yes, we can do OEM products as you requested.

4.Q: Where will the machines be shipped from?

A: It will be shipped from Huangpu Port Guangzhou,China.

And We will find the shipping company which will offer best and most economical freight for our customers.

But If you have a preferred carrier,that will be more helpful for us.

5.Q:How does your factory do regarding quality control?

A:Quality is priority,we always attach great importance to quality control from the very beginning to the very end:

1)All raw material we used are environmental-friendly;
2)Skillful workers care every details in handling the producing and packing processes;
3)Quality Control Department is specially responsible for quality checking in each process.
