CO2 Laser Cutting Machine
>
Ceramic Laser Cutting Machine 300W 150W Plastic Cutting Laser Machine

Ceramic Laser Cutting Machine 300W 150W Plastic Cutting Laser Machine

Brand Name: Hanniu Laser
Model Number: K1390 K1325
MOQ: 1 SET
Price: US$3,000-6,800
Packaging Details: Strong Wooden Case Packing
Payment Terms: TT/DP/LC
Detail Information
Certification:
CE
Power:
150W/300W (Depending On The Thickness)
Bran Name:
Guangzhou Hanniu Laser
Mode Of Operation:
Continuous Wave
Laser Type:
Carbon Dioxide
Machine Type:
Lazer
Products Handled:
Tube
Feature:
Water-cooled
Service:
Professional
Name:
CO2 Laser Cutting Machine
Supply Ability:
10 SETS
Highlight:

Ceramic Laser Cutting Machine 300W

,

Plastic Laser Cutting Machine 300W

,

150W Plastic Cutting Laser Machine

Product Description

CO2 Laser Cutter Machine Multiple Sizes For Plt Acrylic Plastic Ceramic Wood 300W

Features:

1 LCD digital control system, digital display control panel, control the laser head, start or stop, adjust laser power, speedsettings, file viewing, etc
2 Closed carbon dioxide laser tube with long lifespan and stable power (EFR, RECI, Yongli optional)
3 High precision retractable laser head, easy to adjust focal length, with red light positioning system for accurate positioning.
4 CO2 CNC Laser Cutter Engraver machine with Taiwan linear guide rail, stable operation, better carving and cutting effects
5 High quality reflective lenses reduce laser losses and increase power

Technical Parameters:

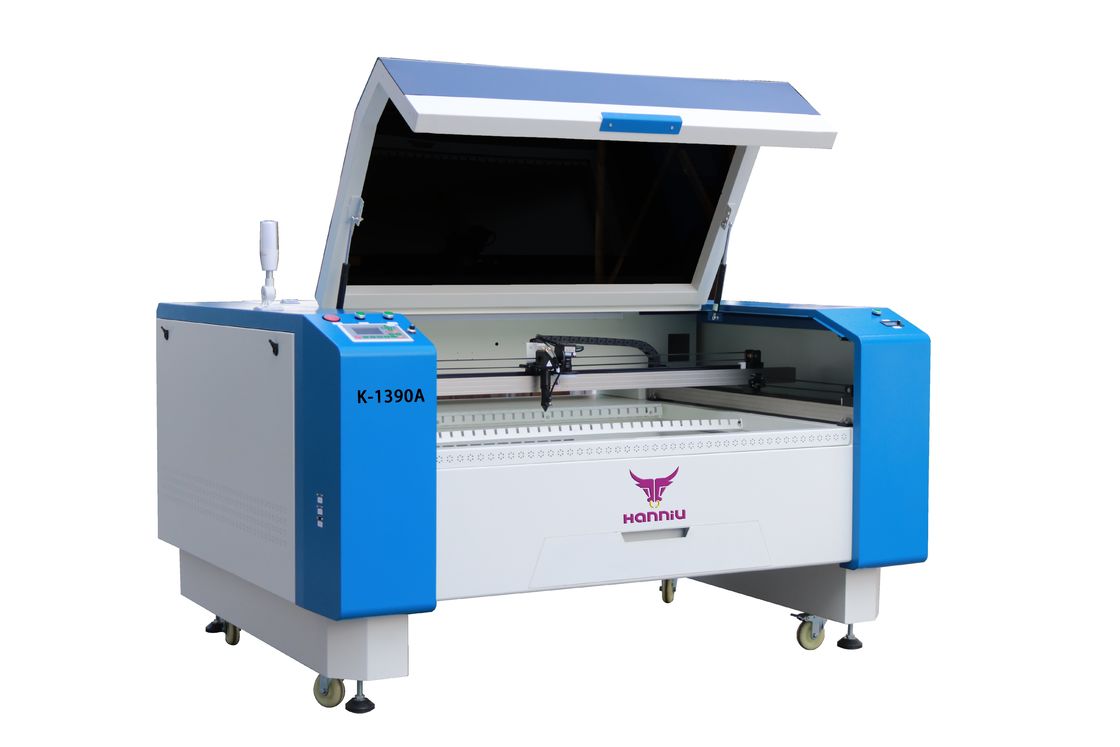

Model K-1390 laser machine
Engraving Area 1300*900mm
Engraving Speed 0-64000mm/min
Laser power 100w/120w/150W
Natural life of laser 6000hours
Laser wave length 10.6um
Resolution ratio 0.025mm
Minimum shaping character Chinese character 2mm/ letter 1mm
Resetting positioning accuracy ±0.01mm
Power Supply Ac220v±10%,50HZ
Gross Power 2600w
Operating Temperature 0-45
Operating humidity 5%-95%
Graphic Format Supported BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
Driver Type Stepper Motor
Cooling air and water cooling
Opearate System Win98/Win2000/WinXP
Max Cutting thickness 10-30mm(acrylic)
Net Weight 420KG
Dimension 1400×1200×1100mm


Applications:

This model is a laser engraving machine system equipped with a CO2 laser tube, which is used to cut acrylic, PVC, rubber sheet, plastic, wood, bamboo,

leather, cloth, two-color board, carbon steel, stainless steel, acrylic, MDF, and other metals and non-metals.

Ceramic Laser Cutting Machine 300W 150W Plastic Cutting Laser Machine 0



Sample:


Support and Services:

Ceramic Laser Cutting Machine 300W 150W Plastic Cutting Laser Machine 2



Packing and Shipping:

Product Packaging:

The CO2 Laser Cutting Machine is carefully packaged in a sturdy wooden crate to ensure safe transportation and delivery.

The machine is securely fastened inside the crate to prevent any damage during transit.

The packaging is designed to protect the delicate components of the machine and ensure it reaches the customer in perfect condition.

Shipping:

Once the CO2 Laser Cutting Machine is packaged, it is ready for shipping.

We partner with reputable shipping companies to ensure reliable and timely delivery to our customers.

 The machine is shipped with insurance coverage to protect against any unforeseen circumstances during transit.

Customers will receive tracking information to monitor the status of their shipment and coordinate delivery.



Ceramic Laser Cutting Machine 300W 150W Plastic Cutting Laser Machine 3



FAQ:

1.Q: Are you a factory or trading company?

A:We are a professional manufacturer specializing in laser for about 10 years with export license.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.

3.Q: Can you do OEM?

A: Yes, we can do OEM products as you requested.

4.Q: Where will the machines be shipped from?

A: It will be shipped from Huangpu Port Guangzhou,China. And We will find the shipping company which will offer best and most economical freight for our customers.

But If you have a preferred carrier,that will be more helpful for us.



5.Q:How does your factory do regarding quality control?

A:Quality is priority,we always attach great importance to quality control from the very beginning to the very end:

   1)All raw material we used are environmental-friendly;
   2)Skillful workers care every details in handling the producing and packing processes;

   3)Quality Control Department is specially responsible for quality checking in each process.



6.Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are legitimate certification company (VIP), and we support payment terms Like L/C,Escrow to ensure your money safety.

And we welcome you to visit our factory.



7.Q:There are too many models, I don't know which one to choose?
A: Welcome to contact us through Trade Manager,we will recommend most suitable machine according to your specific requirements.

8.Q:How to ensure that I received the machine undamaged?
A: Our package is standard for shipping, before packing,we will confirm product undamaged, otherwise, please contact us within 2 days.

Because we've bought insurance for you, we or shipping company will be responsible!
