Portable Fiber Laser Marking Machine 50w 30w 20w Fiber Laser Engraving Machine With Axis

Portable Fiber Laser Marking Machine 50w 30w 20w Fiber Laser Engraving Machine With Axis

Brand Name: Hanniu laser
Model Number: ML
MOQ: 1 SET
Price: US$1,800-2,700
Packaging Details: Strong wooden case packing
Payment Terms: TT/LC/
Detail Information
Place of Origin:
China
Certification:
CE
Name:
Fiber Laser Marking Machine
Mode Of Operation:
Continuous Wave
Feature:
Air-cooled
Min Linear Width:
0.01mm
Working Temperature:
5-35°C
Factory:
Guangzhou, China
Quantity:
Excellent
Service:
Support Technology
Application:
Hardware
Supply Ability:
10 SETS
Highlight:

Portable Fiber Laser Marking Machine

,

30w Fiber Laser Engraving Machine

,

20w Fiber Laser Engraving Machine

Product Description

Fiber Laser Engraving Machine With Axis Of Rotation Work For Metal 20w 30w 50w

Product Description:

The desktop is the desktop model of the fiber laser marking machine. According to the needs of users, the fixture and handling system can be configured separately.
The long-term operation failure rate is low, the product performance is stable and reliable. It has small spot, high marking accuracy,
The light spot is stable and reliable, the speed is fast, the marking effect is convenient to debug, the power consumption is low,

the processing cost is low, and it can meet the requirements of 24 hours full load continuous operation.

Features:

1 Superior laser beam and uniform power density, stable laser power.
2 Quick speed without deviation, small volume, good stability, performance reached the international advanced level.
3 Portable design, environmental protection.
4 High efficiency for photoelectric conversion,simple operation, Compact in structure, support harsh working environment, no consumables.
5 Mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.



Technical Parameters:

Model ML20
Engraving Area 100×100mm
Engraving Speed ≤7000mm/s
Marking the smallest characters 0.8mm
Resetting positioning accuracy ±0.01mm
Power Supply Ac220v±10%,50HZ,20A
Input power  <1800w
Operating Temperature 0-45°C
Operating humidity 5%-95%
Graphic Format Supported BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
Transmission Vibration galvanometer
Cooling Wter
Opearate System Win98/Win2000/WinXP
Packing wooden case
Net Weight 150kg
Dimension

1200×800×1500mm

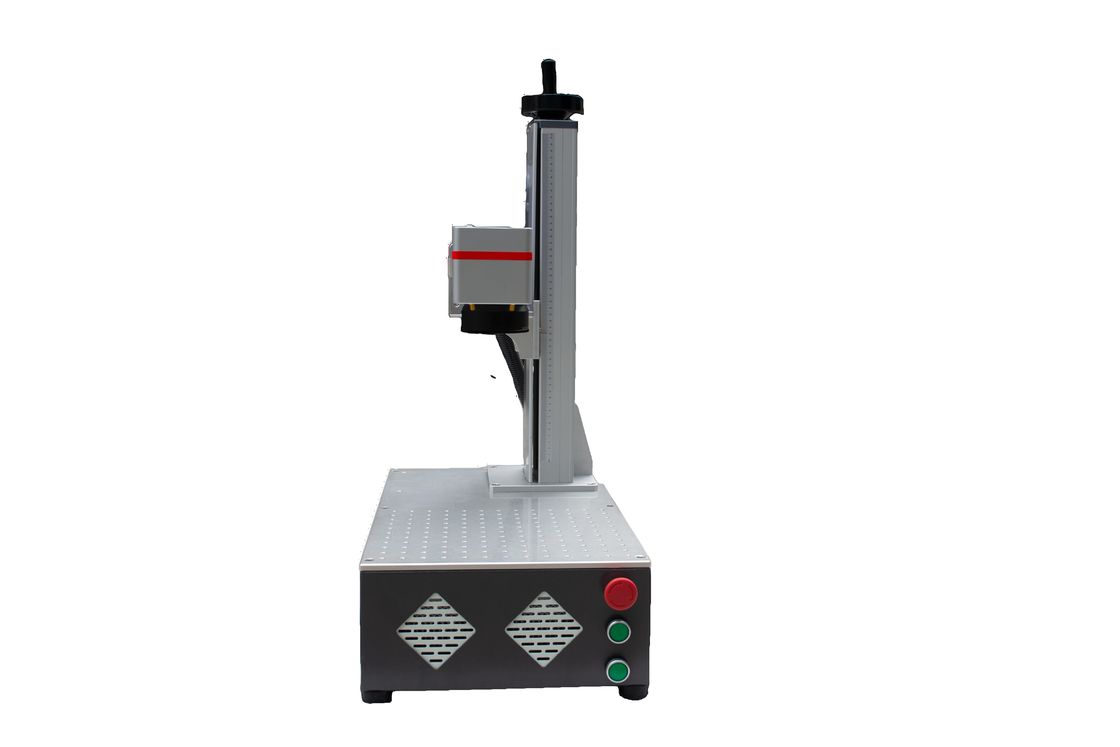

Machine picture:

Portable Fiber Laser Marking Machine 50w 30w 20w Fiber Laser Engraving Machine With Axis 0



Sample:

Portable Fiber Laser Marking Machine 50w 30w 20w Fiber Laser Engraving Machine With Axis 1



Support and Services:



Portable Fiber Laser Marking Machine 50w 30w 20w Fiber Laser Engraving Machine With Axis 2



Packing and Shipping:

Portable Fiber Laser Marking Machine 50w 30w 20w Fiber Laser Engraving Machine With Axis 3



1.Standard plywood case, no need to steam, can export directly.

2. car-lift machine up and down loading. more safe for machine.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment.

FAQ:

1.Q: Are you a factory or trading company?
A:We are a professional manufacturer specializing in laser for about 10 years with export license.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.

3.Q: Can you do OEM?
A: Yes, we can do OEM products as you requested.

4.Q: Where will the machines be shipped from?
A: It will be shipped from Huangpu Port Guangzhou,China. And We will find the shipping company which will offer best and most economical freight for our customers. But If you have a preferred carrier,that will be more helpful for us.

5.Q:How does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality control from the very beginning to the very end:
    1)All raw material we used are environmental-friendly;
    2)Skillful workers care every details in handling the producing and packing processes;
    3)Quality Control Department is specially responsible for quality checking in each process.
6.Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are legitimate certification company (VIP), and we support payment terms Like L/C,Escrow to ensure your money safety.And we welcome you to visit our factory.
7.Q:There are too many models, I don't know which one to choose?
A: Welcome to contact us through Trade Manager,we will recommend most suitable machine according to your specific requirements.

8.Q:How to ensure that I received the machine undamaged?
A: Our package is standard for shipping, before packing,we will confirm product undamaged, otherwise, please contact us within 2 days. Because we've bought insurance for you, we or shipping company will be responsible!
