Four In One Fiber Laser Welding Machine Weld For Metal SS CS AL 3000W

Brand Name:	Hanniu laser
Model Number:	SCH-3000W
MOQ:	1 SET
Price:	5428-6428USD
Packaging Details:	Strong wooden case packing
Payment Terms:	T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Key Selling Points:

High-accuracy

Laser Power:

3000W

Operating Way:

Handheld

Laser Source Brand:

Raycus

Repeatability Accuracy:

±0.01mm

Application Material:

All Metal Materials

Laser Wave Length:

1064nm

Fiber Cable Length:

5 M Customized

Supply Ability:

10 SETS

Highlight:

3000W fiber laser welding machine

metal welding laser machine

SS CS AL laser welder

Product Description

Working principle

The weld joint produced by laser welding are high quality, with clean, consistent joins that exhibit minimal spatter and porosity.

This results in stronger welds with better appearance, often eliminating the need for post-weld finishing.

The Handheld Fiber Laser Welding Machine offers precision and versatility for various welding applications.

Its lightweight design allows for easy maneuverability, making it ideal for on-site and complex welding tasks.

With advanced fiber laser technology, this machine delivers high-quality welds with minimal heat distortion,

ensuring strong and durable joints. Perfect for manufacturers and fabricators seeking efficiency and reliability in their welding processes.

Machine parameter

Model	SCH-3000
Laser power	3000w
Cooling method	Water cooling
Laser wavelength	1070nm
Welding depth	SS/CS≤3.5mm, Al≤2mm
Pulse width	Continuous light
Welding depth	≤1.2mm
Repeat precision	±0.01mm
Power consumption	≤7KW
Power supply	380v±10%/50Hz/30A
Length of fiber optical	8m
Interface of fiber optical	QBH
Module life	>1000000hrs
Size	14506801470mm
Net weight	155KG

Feature

High Precision: Delivers fine, accurate welds for small and intricate parts.
Portable Design: Easy to move and operate, ideal for on-site welding.
Durable: Built to last with reliable, long-term performance.
Versatile: Works with a range of metals including steel, stainless steel, and aluminum.
Energy Efficient: Offers high welding efficiency while consuming less power.

Suitable Materials and Applications

Automotive Industry: Used for welding critical components such as engine parts, transmission systems, and body frames.

They ensure strong, consistent joints with minimal heat-affected zones, enhancing vehicle safety and durability.

Medical Device Manufacturing: Used to weld intricate medical tools, surgical instruments, and implantable devices

(e.g., pacemakers, orthopedic implants). The process ensures sterile, high-integrity joints that meet biocompatibility requirements.

Metal Fabrication and Jewelry Making: Employed in fabricating metal structures, pipes, and sheets,

as well as in jewelry production for joining fine metal pieces with intricate designs. They offer precise control over weld size and shape.

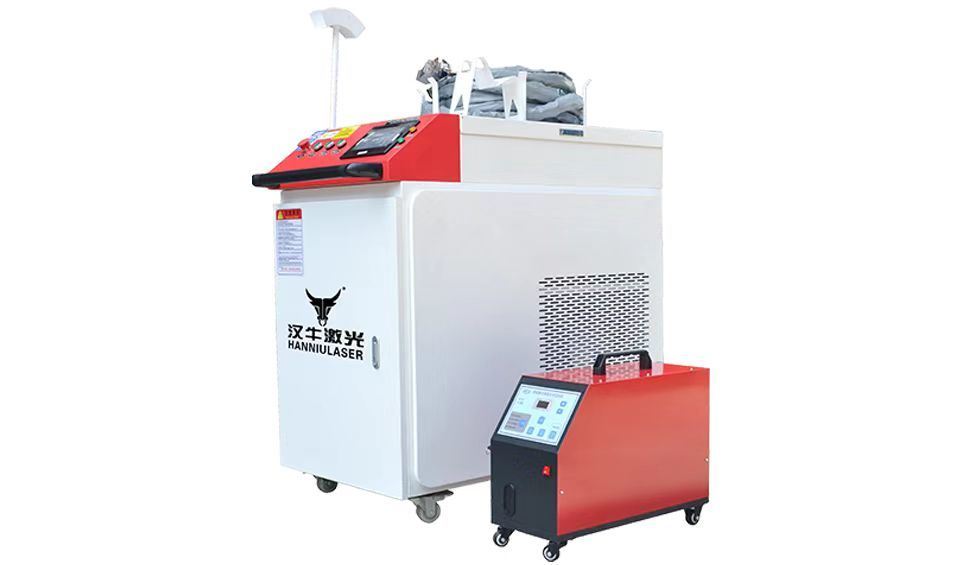

Machine picture

Company&Factory

Exhibitions

Shipping&Packing

Packaged in standard plywood cases that are fumigation-free, requiring no additional steaming and enabling direct export.
Loading and unloading are handled via car-lift for safer handling of the machine.
The fumigation-free plywood cases simplify import procedures.
Delivery timeframe: Shipped within 3–5 days upon receipt of payment.

FAQ

1. About Company Qualification and Factory

Q: Are you a factory or trading company? Where is your factory located, and can I visit it?

As a first-time importer, how can I trust your company and ensure I receive the goods after ordering?

A: We are a professional laser equipment manufacturer with 10 years of experience and export licenses, not a trading company.

Our factory is in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport, and visits are welcome.

As a legitimate certified company, we support payment methods like L/C and Escrow to ensure your fund safety. You’re also welcome to inspect our factory in person.

2. About Customization and Model Selection

Q: Do you offer OEM services? There are too many models – how do I choose the right one?

A: Yes, we provide OEM services as per your requirements. For model selection, please contact our Trade Manager.

We’ll recommend the most suitable machine based on your specific needs.

3. About Quality Control

Q: What measures does your factory take for quality control?

A: Quality is our top priority. We strictly control quality throughout the process:

1) Using eco-friendly raw materials;

2) Skilled workers overseeing every detail in production and packaging;

3) A dedicated Quality Control Department inspecting each process.

4. About Logistics and Shipping

Q: Where are the machines shipped from? How is the freight arranged? Can we use our preferred logistics company?

A: Machines are shipped from Huangpu Port, Guangzhou, China. We’ll arrange the most cost-effective freight.

If you have a preferred carrier, please inform us, and we’ll coordinate accordingly.

5. About Receipt Guarantee

Q: How can I ensure the machine arrives undamaged?

A: We use standard shipping packaging and confirm the product is undamaged before shipping.

We’ve purchased insurance for the goods – if damage occurs, please contact us within 2 days, and we or the shipping company will take responsibility.
