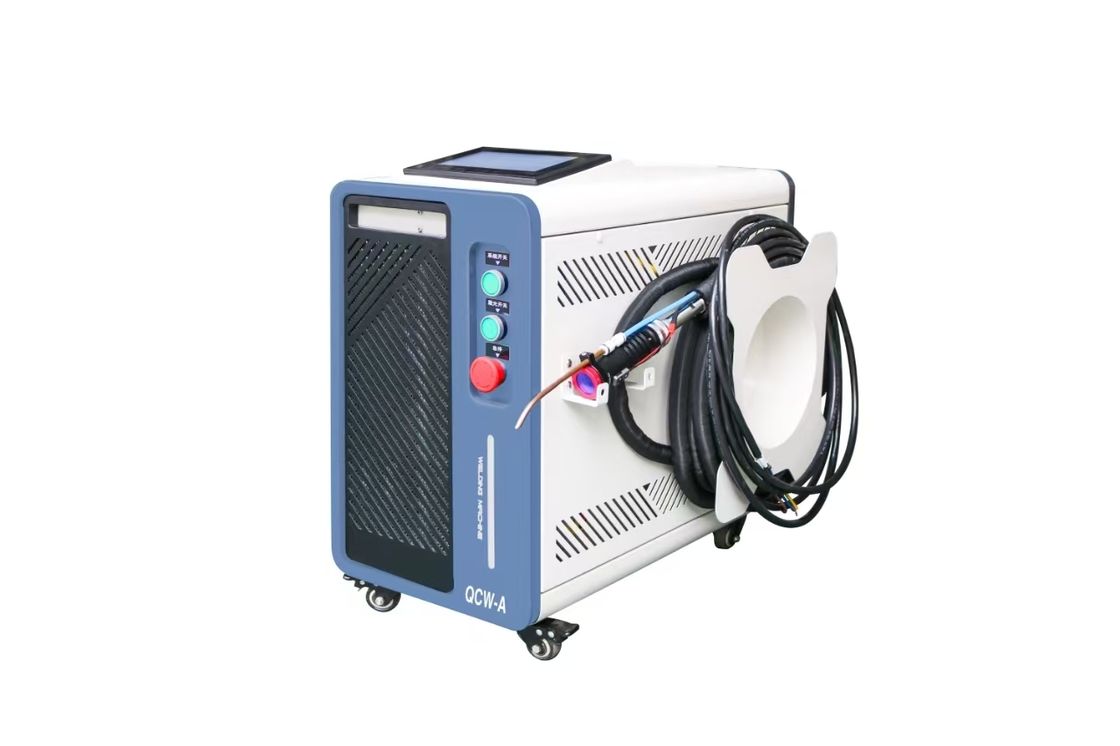

Pulsed Desktop Handheld Laser Welding Machine Air Cooled For Metal 1500W

Brand Name:	Hanniu
Model Number:	QCW1500
MOQ:	1 SET
Price:	5428-5685USD
Packaging Details:	Strong wooden case packing
Payment Terms:	D/P,T/T,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Weld Laser:

Laser Welding

Laser Source:

Raycus MAX IPG

Wire:

Single/Double

Power Regulation:

10%-100%

Machine Type:

Automatic

Laser Type:

Pulse Laser

Package Type:

Standard Plywood Case

Protective Gas:

Nitrogen

Supply Ability:

10 SETS

Highlight:

1500w handheld laser welding machine

air cooled fiber laser welder

desktop metal laser welding machine

Product Description

Working principle

High-energy-density laser pulses are generated by pulsed lasers, which are focused and then applied to the seams of the workpiece.

The laser energy is used to instantly melt the material to form a molten pool, and then a precise connection is achieved through rapid solidification.

Its advantages lie in concentrated energy, small heat-affected zone, narrow and smooth weld seams.

Technical parameter

Machine model	SCH-1500
Laser power	1500
Output power	1500w
Laser wavelength	1070NM
Welding depth	Stainless steel, carbon steel, aluminum ≤3mm
Pulse width	Continuous light
Welding depth	≤1.2mm
Repeat precision	±0.01mm
Cooling style	Air cooling
Power consumption	6KW
Power supply	220V 50HZ
Length of fiber-optical	8m
Interface of fiber-optical	QBH
Module life	>100000hrs

Main feature

The energy is highly concentrated and controllable
The action time of pulsed laser is short, and the heat diffusion range is limited
High welding accuracy,Meet the welding requirements of complex structures
The weld seam has high strength, good sealing performance, and a smooth surface without defects such as pores and cracks, reducing subsequent grinding and repair processes and lowering production costs.

The advantages of welding

Titanium, aluminum, copper, zinc, gold, sliver and many other metal and alloy, carbon steel and stainless steel materials, and also cooper-brass, cooper-titanium, nickel-cooper, cooper-titanium and many other heterogeneous metals.

Company Strength

Exhibition

Packaging & Shipping

Standard plywood case, no need to steam, can export directly.
car-lift machine up and down loading. more safe for machine.
when importing, the plywood case is with fumigation-free, the procedure is simple.
Delivery Detail: within 3-5 days after received your payment.

FAQ

1.Q: Are you a factory or trading company?

A:We are a professional manufacturer specializing in laser for about 10 years with export license.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.

3.Q: Can you do OEM?

A: Yes, we can do OEM products as you requested.

4.Q: Where will the machines be shipped from?

A: It will be shipped from Huangpu Port Guangzhou,China. And We will find the shipping company which will offer best and most economical freight for our customers. But If you have a preferred carrier,that will be more helpful for us.

5.Q:How does your factory do regarding quality control?

A:Quality is priority,we always attach great importance to quality control from the very beginning to the very end: 1)All raw material we used are environmental-friendly; 2)Skillful workers care every details in handling the producing and packing processes; 3)Quality Control Department is specially responsible for quality checking in each process.

6.Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?

A: We are legitimate certification company (VIP), and we support payment terms Like L/C,Escrow to ensure your money safety.And we welcome you to visit our factory.

7.Q:There are too many models, I don't know which one to choose?

A: Welcome to contact us through Trade Manager,we will recommend most suitable machine according to your specific requirements.

8.Q:How to ensure that I received the machine undamaged?

A: Our package is standard for shipping, before packing,we will confirm product undamaged, otherwise, please contact us within 2 days. Because we've bought insurance for you, we or shipping company will be responsible!
