CO2 Laser Cutting Machine
>
K1390 New Model CO2 Laser Cutting Machine For Acrylic Leather Wood Bamboo 150W 300W

K1390 New Model CO2 Laser Cutting Machine For Acrylic Leather Wood Bamboo 150W 300W

Brand Name: Hanniu
Model Number: K1390
MOQ: 1 SET
Price: 3428-4142USD
Packaging Details: Strong wooden case packing
Payment Terms: Western Union,T/T,D/P,D/A,L/C,MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE
Laser Wavelength:
10640nm
Driving System:
Stepper Motor
Cooling Mode:
Water Cooling
Max Cutting Thickness:
< 35mm(acrylic)
Warrranty:
1 Year For Whole Machine
Control Softwear:
RD System
Acrylic Cutting:
30mm
Accuracy:
0.05mm
Supply Ability:
10 SETS
Highlight:

CO2 laser cutting machine for acrylic

,

150W laser cutter for wood

,

300W CO2 laser engraver for leather

Product Description
Product Description
  1. Equipped with a high-speed motor and matching driver, the equipment operates with greater stability and higher precision during operation.
  2. Boasting a stable laser line design, the machine ensures consistent laser power output across all working positions.
  3. This type of machine features a compact footprint, making it an ideal choice for arts and crafts production scenarios.
  4. Adopting DSP control software, it delivers high processing speed, stable overall performance, and user-friendly operation.
  5. The motorized liftable platform enables compatibility with materials of different thicknesses, enhancing application versatility.
Technical Parameters
Model K-1390
Engraving Area 1300*900mm
Engraving Speed 0-64000mm/min
Laser power 80W/100w/150w/300w
Natural life of laser 6000hours
Laser wave length 10.6um
Resolution ratio 0.025mm
Minimum shaping character Chinese character 2mm/ letter 1mm
Resetting positioning accuracy ±0.01mm
Power Supply Ac220v±10%,50HZ
Gross Power 2600w
Operating Temperature 0-45
Operating humidity 5%-95%
Graphic Format Supported BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
Driver Type Stepper Motor
Cooling air and water cooling
Opearate System Win98/Win2000/WinXP
Max Cutting thickness 10-30mm(acrylic)
Net Weight 420KG
Dimension 1400×1200×1100mm
Features

A key benefit lies in its exceptional controllability—users can precisely adjust critical parameters such as laser beam intensity, focal length, and heat output.

This level of fine-tuning ensures optimal processing results for different materials and application scenarios, from delicate engraving on thin fabrics to high-power cutting of thick metals.

Applications

Model industry (construction models, aviation and navigation models and wooden toys), advertisement, decoration, arts and crafts, electronic and electric appliances, garment industry fabric leather cut, etc.

Working materials:

Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double-color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lampshade, etc.

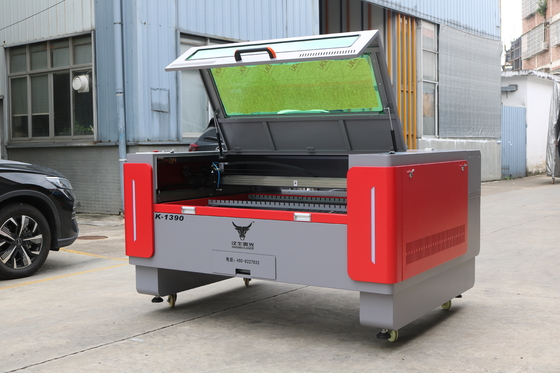

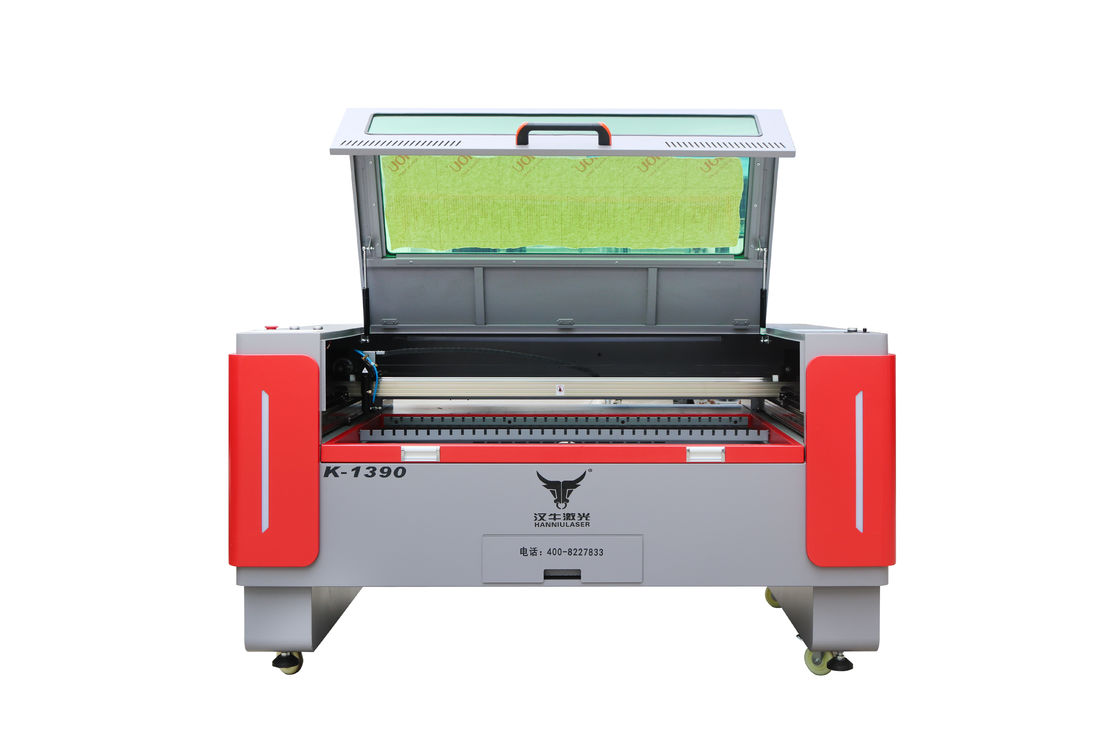

Machine picture
K1390 New Model CO2 Laser Cutting Machine For Acrylic Leather Wood Bamboo 150W 300W 0
Support and Services:
Packing and Shipping:
K1390 New Model CO2 Laser Cutting Machine For Acrylic Leather Wood Bamboo 150W 300W 3
  • Standard plywood case, no need to steam, can export directly.
  • car-lift machine up and down loading. more safe for machine.
  • when importing, the plywood case is with fumigation-free, the procedure is simple.
  • Delivery Detail: within 3-5 days after received your payment.
FAQ:

1.Q: Are you a factory or trading company?

A: We are a professional manufacturer specializing in laser for about 18 years with export license.

2.Q: Where is your factory located? How can I visit there?

A: Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.

3.Q: Is a CO2 laser cutter worth it?

A: Whether you are cutting intricate patterns or detailed engravings, the accuracy of a CO2 laser cutter ensures exceptional results every time.

Versatility with MaterialsA CO2 laser cutter can work with a wide range of materials, making it a versatile tool for businesses.

4.Q: How does your factory do regarding quality control?

A: Quality is priority,we always attach great importance to quality control from the very beginning to the very end: 1)All raw material we used are environmental-friendly; 2)Skillful workers care every details in handling the producing and packing processes; 3)Quality Control Department is specially responsible for quality checking in each process.

5.Q: How to ensure that I received the machine undamaged?

A: Our package is standard for shipping, before packing,we will confirm product undamaged, otherwise, please contact us within 2 days.

Because we've bought insurance for you, we or shipping company will be responsible!
