CO2 Laser Cutting And Engraving Machine High Precision For Industrial Applications

Brand Name:	Hanniu
Model Number:	AKC1325
MOQ:	1 SET
Price:	6462-8148USD
Packaging Details:	Strong wooden case packing
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Supply Ability:

5 SETS

Product Description

CO2 Laser Cutting And Engraving Machine High Precision For Industrial Applications

Product description

This CO2 laser cutting and engraving machine adopts high-precision ball screw transmission and a professional industrial cooling system, guaranteeing reliable and stable performance during prolonged operations.

Boasting a 1300x2500mm large working area, it supports multiple design software and a wide range of materials, delivering outstanding cutting accuracy and strong versatility for diverse production needs.

Equipped with a 150W laser source (service life: 2000-4000 hours) and adjustable resolution up to 1200 dpi, this machine is suitable for various industries and allows users to customize processing parameters freely.

Core Features

Premium optical lenses: High-quality professional optical components enhance optical performance significantly, with excellent reflection efficiency and a long service life.

Stable heavy-duty frame: The robust bed structure resists deformation, ensuring no vibration during high-speed motion. It achieves smooth processing surfaces and efficient cutting/engraving.

High precision & speed: Adopts step subdivision drive control, enabling fast engraving, high positioning accuracy, and smooth cutting of bevels and arcs.

Technical Parameters

Parameter	Specification
Egraving and cutting area	1300*2500mm
Laser power	150W
Engraving speed	0-64000mm/min
Resolution	0.025mm
Minimum Character Size	Chinese Character: 2mm / Letter: 1mm
Max Cutting Thickness	30mm (acrylic), 1.8mm (stainless steel)
Reset Positioning Accuracy	±0.01mm
Transmission System	Screw rod transmission
Operating Temperature	0-45°C
Operating Humidity	5%-95% (no condensed water)
Supported Graphic Formats	BMP, GIF, JPG, PCX, TGA, TIFF, PLT, CDR, DWG, DXF
Power Supply	AC220V±10%, 50Hz/60Hz
Cooling Method	Water cooling
Gross Power	<1800W
Net Weight	680KG
Machine Dimension	1950mm3400mm1150mm

Machinery Configuration

High-performance motion control system for precise and fast operation
Rigid integral casting structure for enhanced stability
Routeway feeding design to accommodate materials of different lengths
Anodized aluminum strip working table
Industrial constant-temperature cooling system
Hydraulic protection system
Air blowing protection device
Smoke and dust exhaust system
Industrial constant-temperature water pump

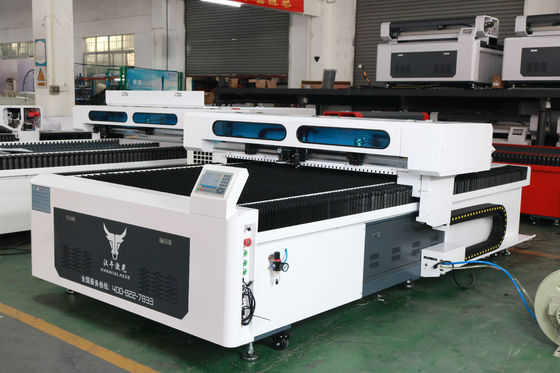

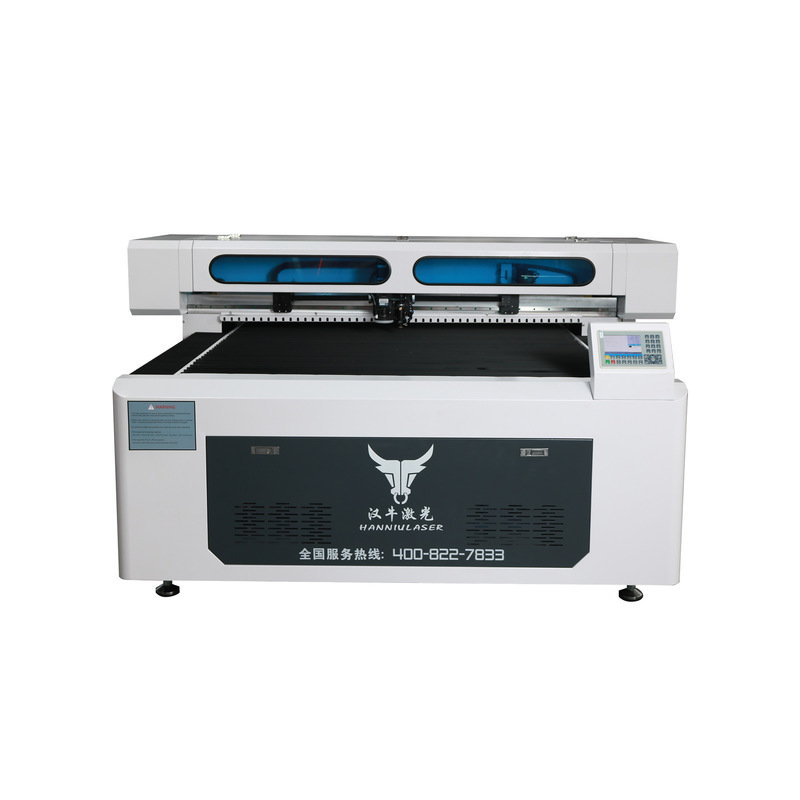

Machine picutre

Company&factory

Exhibitions

Certification

Shipping&Packing

Standard fumigation-free plywood case, export-ready without additional processing
Car-lift loading/unloading for safer transportation
Simple import procedures due to fumigation-free packaging
Delivery time: 3-5 working days after payment confirmation

FAQ

Q: Are you a factory or trading company?

A: We are a professional laser equipment manufacturer with over 10 years of experience and an export license.
Q: Where is your factory located? How can I visit?

A: Our factory is in Tanbu Town, Huadu District, Guangzhou, adjacent to Baiyun Airport. We welcome you to arrange a visit anytime.
Q: Do you offer OEM services?

A: Yes, we provide customized OEM products according to your specific requirements.
Q: From which port will the machine be shipped?

A: Shipment is from Huangpu Port, Guangzhou. We will select the most cost-effective shipping company for you, or we can use your preferred carrier.
Q: How do you ensure product quality?

A: Quality is our top priority, with strict control throughout the entire process:
