Fiber Laser Welding Machine Weld For Stainless Steel Carbon Steel Aluminum 1500w

Brand Name:	Hanniu
Model Number:	TFZ-1500
MOQ:	1 SET
Price:	2500-3500USD
Packaging Details:	Strong wooden case packing
Payment Terms:	TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Control Software:

Qilin Or Super System

Mode Of Operation:

Pulsed Laser

Weight:

155KG

Applicable Material:

SS, CS, AL, COPPER, METAL

Oem Service:

Available

Wave Lenght:

1064nm

Machine Power:

1500W-3000W

Brand:

Hanniu Laser

Control Softwear:

RD System

Cooling:

Water Colling

Import:

0-40,000mm/min

Condition:

Cutting Speed:

0-500mm/s

Electric Power:

380V 50Hz

Port:

Guangzhou

Speed:

60000mm/min

Supply Ability:

10 SETS

Highlight:

Aluminum Fiber Laser Welding Machine

Carbon Steel Fiber Laser Welding Machine

Stainless Steel Fiber Laser Welding Machine

Product Description

Fiber Laser Welding Machine Weld For Stainless Steel Carbon Steel Aluminum 1500w

Working principle

Laser welding utilizes a high-energy laser beam as a precise heat source to rapidly heat metal materials to an optimal melting state without excessive vaporization.

During the welding process, the molten materials fully fuse and re-solidify under a controlled protective environment, producing strong, clean, and oxide-free weld seams.

By flexibly adjusting key parameters such as laser power and focal position, the weld profile can be accurately controlled—from wide and shallow seams to narrow and deep penetration—making the process highly adaptable to different material thicknesses and product structures.

Machine parameter

Model	TFZ-S-1500W
Laser power	1500w/2000w/3000w
Cooling method	Water cooling
Laser wavelength	1070nm
Welding depth	SS/CS≤3.5mm, Al≤2mm
Pulse width	Continuous light
Welding depth	≤1.2mm
Repeat precision	±0.01mm
Power consumption	≤7KW
Power supply	380v±10%/50Hz/30A
Length of fiber optical	8m
Interface of fiber optical	QBH
Module life	>1000000hrs
Size	14506801470mm
Net weight	155KG

Laser Welding Machine: Brief Introduction

This laser welding machine is ideal for thin plate welding, featuring an integrated design of 3D workbench and main unit.

It excels at welding space curves, LED metal components, and various types of characters.

Its versatility makes it widely used in fields such as medical devices, electronic components, circuit boards, ICs, batteries, and instruments.

Suitable Materials and Applications

- Sheet metal fabrication
- Automotive & auto parts welding
- New energy battery and power systems
- Hardware, kitchenware & sanitary products
- Electronics & precision components
- Mold manufacturing and repair
- Metal signage, letters & decoration

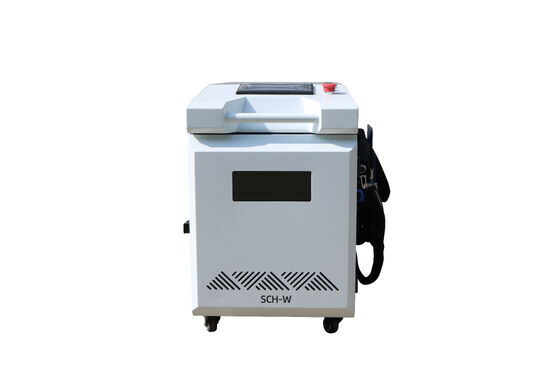

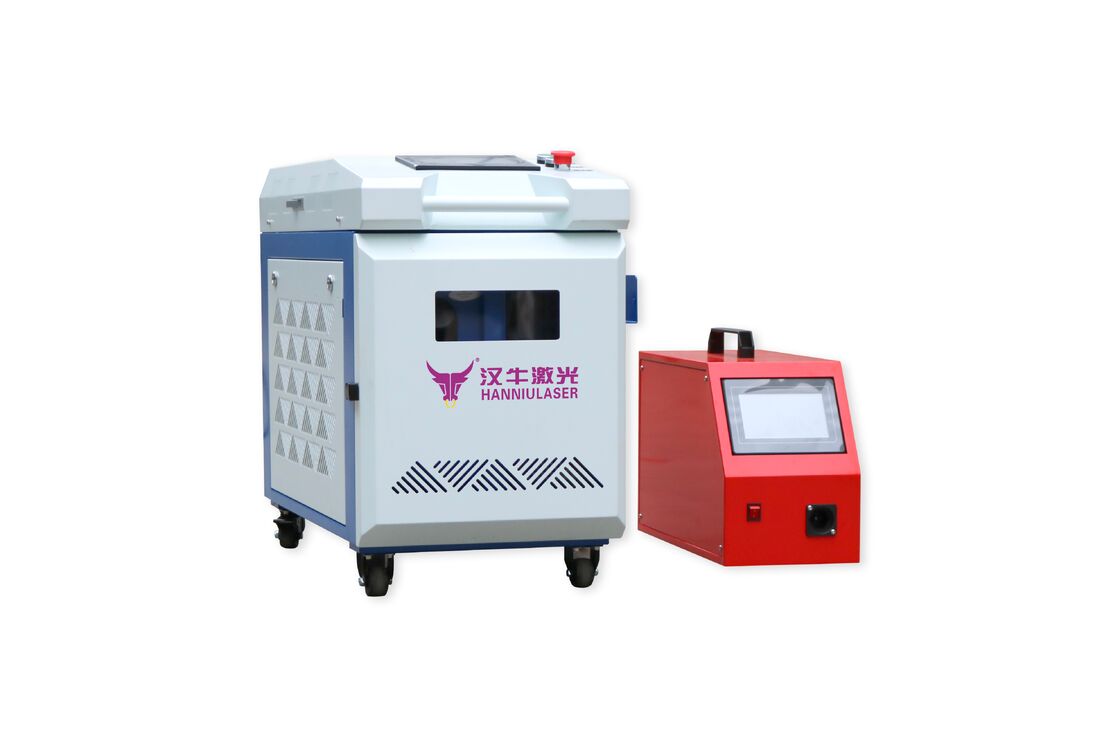

Machine picture

Our Advantages for Laser Welding Machine

Versatile welding capability, suitable for all metal materials and thick workpieces.
Excellent light intensity for reliable welding performance.
High-voltage design ensures exceptional stability during operation.
Equipped with a high-precision extended optical path for enhanced accuracy.

Warranty and After-Sales Service for Our Laser Welding Machine

This laser welding machine comes with a one-year warranty. During the warranty period, we provide free replacement of faulty parts caused by non-human factors.

Our technicians offer free on-site training at our workshop.
On-demand on-site service is available—our technicians can travel to your location to assist with any needs.
We guarantee year-round after-sales support with no holidays or breaks, ensuring prompt responses to your issues.

Company&Factory

Exhibitions

Shipping&Packing

Packaged in standard plywood cases that are fumigation-free, requiring no additional steaming and enabling direct export.
Loading and unloading are handled via car-lift for safer handling of the machine.
The fumigation-free plywood cases simplify import procedures.
Delivery timeframe: Shipped within 3–5 days upon receipt of payment.

1. About Company Qualification and Factory

Q: Are you a factory or trading company? Where is your factory located, and can I visit it? As a first-time importer, how can I trust your company and ensure I receive the goods after ordering?

A: We are a professional laser equipment manufacturer with 10 years of experience and export licenses, not a trading company. Our factory is in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport, and visits are welcome. As a legitimate certified company, we support payment methods like L/C and Escrow to ensure your fund safety. You’re also welcome to inspect our factory in person.

2. About Customization and Model Selection

Q: Do you offer OEM services? There are too many models – how do I choose the right one?

A: Yes, we provide OEM services as per your requirements. For model selection, please contact our Trade Manager. We’ll recommend the most suitable machine based on your specific needs.

3. About Quality Control

Q: What measures does your factory take for quality control?

A: Quality is our top priority. We strictly control quality throughout the process: 1) Using eco-friendly raw materials; 2) Skilled workers overseeing every detail in production and packaging; 3) A dedicated Quality Control Department inspecting each process.

4. About Logistics and Shipping

Q: Where are the machines shipped from? How is the freight arranged? Can we use our preferred logistics company?

A: Machines are shipped from Huangpu Port, Guangzhou, China. We’ll arrange the most cost-effective freight. If you have a preferred carrier, please inform us, and we’ll coordinate accordingly.

5. About Receipt Guarantee

Q: How can I ensure the machine arrives undamaged?

A: We use standard shipping packaging and confirm the product is undamaged before shipping. We’ve purchased insurance for the goods – if damage occurs, please contact us within 2 days, and we or the shipping company will take responsibility.
