Factory Price 1500W Handheld Fiber Laser Welding Machine Water Cooled Portable Laser Welder for Metal Stainless Steel

Brand Name:	hanniu
Model Number:	1500W
MOQ:	1
Price:	2500USD
Packaging Details:	wooden case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

SS,CS,AL,Metal

Price Level:

Travelling Distance:

400*300*150mm

Marking Range:

50*50-300*300mm

Products Handled:

Laser Head

Oem Service:

Available

Accuracy:

0.05mm

Condition:

Welding Wire:

0.1-2mm

Machinery Test Report:

Provided

Welding Thickness:

3mm Metal

Dimensions:

1200mm X 800mm X 1500mm

Welding Head:

Swing

Cooler:

Water Cooling

Product Description

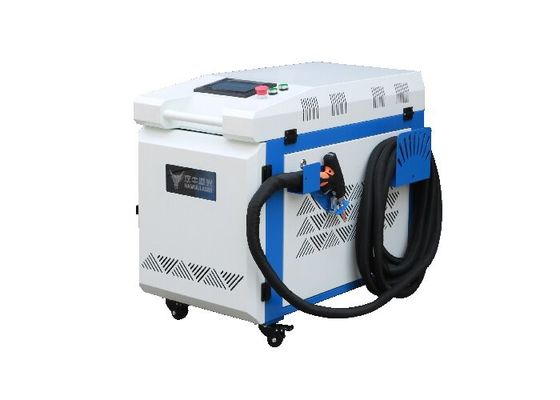

1500W Water-Cooled Handheld Laser Welding Machine

Product Description

1. Product Overview

The 1500W water-cooled handheld fiber laser welding machine is a professional-grade metal joining solution designed for small to medium workshops, metal fabrication shops, and on-site repair services. Compared to traditional TIG welding, this machine is 3-5 times faster, requires minimal operator training, and produces clean welds with no post-processing.

Key advantages at a glance:

✅ Water-cooled system – supports 24/7 continuous operation

✅ Handheld design – portable, works on-site and in tight spaces

✅ 1500W power – welds stainless steel, aluminum, carbon steel up to 4mm

✅ Low skill requirement – operators learn in hours, not months

✅ CE certified – ready for international markets

2. Technical Specifications

Parameter Specification

Laser Power 1500W

Laser Wavelength 1080 ± 5 nm

Cooling Method Water-cooled (industrial chiller)

Welding Speed 0 – 120 mm/s

Fiber Cable Length 10 m (standard, customizable)

Welding Thickness (Stainless Steel) 0.3 – 4 mm

Welding Thickness (Aluminum) 0.5 – 4 mm

Welding Thickness (Carbon Steel) 0.3 – 4 mm

Working Mode Continuous / Pulse

Power Supply AC 220V ± 20% or 380V

Operating Temperature 0 – 40°C

Machine Dimensions (L×W×H) 950 × 428 × 824 mm

Machine Weight Approx. 98 kg (including chiller)

3. Material Compatibility

This machine efficiently welds all common industrial metals:

Material Thickness Range Weld Quality

Stainless Steel (201, 304, 316) 0.3 – 4 mm No blackening, smooth seam

Carbon Steel (Q235, Q345) 0.3 – 4 mm High strength, minimal spatter

Aluminum (5系, 6系) 0.5 – 4 mm Good penetration for reflective metal

Copper 0.5 – 3 mm Requires higher power setting

Brass 0.5 – 3 mm Clean finish

Titanium 0.3 – 3 mm Excellent, narrow HAZ

Note: This machine also supports dissimilar metal welding (e.g., copper to brass, stainless steel to carbon steel).

4. Key Features

4.1 Lightweight Handheld Torch

Welding gun weight: only 600–700g

Ergonomic design reduces operator fatigue during extended use

Allows precise control in tight spaces or complex angles

4.2 Advanced Water Cooling System

Industrial-grade water chiller with ±1℃ temperature control

Enables 24/7 continuous operation at full 1500W power

No duty cycle limits – ideal for production environments

4.3 Fast Welding Speed

Welding Method Speed (mm/s) Relative Speed

Laser Welding 80 – 120 3-10x faster

TIG Welding 10 – 30 Baseline

MIG Welding 30 – 60 2-3x slower than laser

4.4 Minimal Heat Input

Narrow heat-affected zone (HAZ)

No warping on thin metals (0.3mm – 2mm)

No burn-through on thin sheets

No post-processing – weld comes out clean

4.5 Optional 3-in-1 Functionality

Same machine can be configured for:

✦ Laser welding

✦ Laser cutting (up to 3mm)

✦ Laser cleaning (surface rust removal)

5. Application

This versatile machine is widely used in:

Industry Typical Applications

Kitchen & Furniture Stainless steel cabinets, countertops, shelves

Construction Railings, staircases, window frames, gates

Automotive Body repair, exhaust pipes, battery packs

Medical Equipment Surgical instruments, medical carts

Signage & Display Letter welding, display racks, stands

Pipe & Tube Pipeline repair, tube welding

Jewelry & Precision Small parts, delicate repairs

On-site Repair Field maintenance, mobile welding service

6. Comparison: Laser Welding vs Traditional Welding

Feature Laser Welding (1500W) TIG Welding MIG Welding

Welding Speed 80-120 mm/s 10-30 mm/s 30-60 mm/s

Skill Required Low (hours of practice) High (months/years) Medium

Heat Input Very low High Medium

Post-processing None Often required Sometimes required

Consumables Minimal (wire, gas) Tungsten, filler, gas Wire, gas, tips

Operator Fatigue Low High Medium

Thin Material Excellent (no burn-through) Difficult Difficult

Initial Cost Higher Lower Medium

Long-term ROI High (speed + labor savings) Low Medium

7. What's Included in the Package

Item Quantity Notes

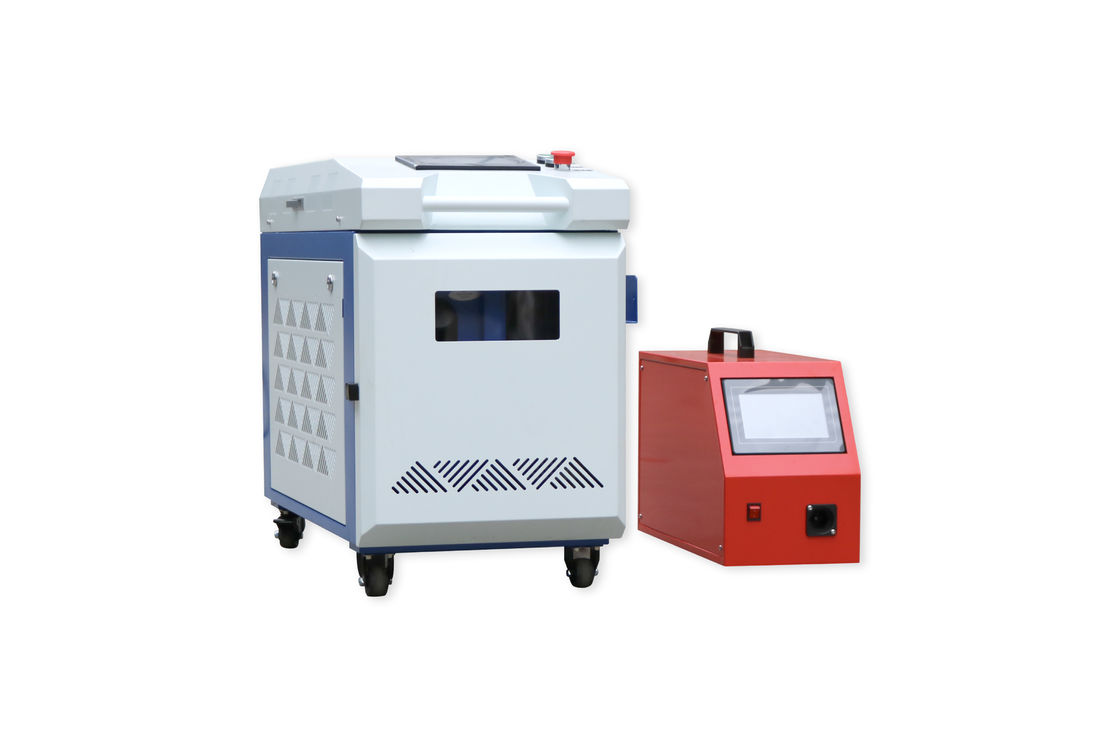

1500W Laser Welding Machine (main unit) 1 set With control panel

Handheld Welding Torch 1 piece 600-700g ergonomic design

Water Chiller 1 unit Industrial grade

10m Fiber Cable 1 piece Connected to torch

Protective Lens (spare) 2 pieces For maintenance

Operation Manual 1 copy English version

Wooden Export Case 1 set For safe shipping

Optional Accessories (available at extra cost):

Automatic wire feeder

Cutting nozzle kit (for 3-in-1 function)

Cleaning nozzle kit

Extended fiber cable (15m / 20m)

Rotational axis for pipe welding

8. Why Choose This 1500W Water-Cooled Model?

Buyer Concern How This Machine Solves It

"I need to weld continuously all day" Water-cooled system → no duty cycle limits, 24/7 operation

"My workshop has limited space" Compact size (950×428×824mm) + wheels → fits anywhere, moves easily

"I don't have skilled welders" Low learning curve → operator learns in hours, not months

"I weld different materials daily" Presets for steel, aluminum, copper → quick setup between materials

"I need on-site welding" Portable design + 10m fiber cable → take it to the job site

"Thin metal burns through easily" Minimal heat input → welds 0.3mm stainless without burn-through

"Post-weld cleaning takes too long" Clean weld seam → no spatter, no blackening, ready to use immediately

9. Technical Support & After-Sales Service

Service Details

Warranty 12-24 months on laser source and main components

Training Video tutorials + remote technical support

Spare Parts Stocked and ready for fast shipping

Languages Interface available in English, Spanish, Russian, Arabic

Certifications CE, FDA (for laser products)

Factory direct pricing – no middleman markup. OEM/ODM available (custom logo, color, voltage, control panel language).

10. Contact Us for a Quote

To provide you with an accurate quote, please let us know:

Required power: □ 1500W □ 2000W □ 3000W

Main materials to weld: □ Stainless Steel □ Aluminum □ Carbon Steel □ Copper □ Other: ______

Typical thickness: ______ mm

Estimated quantity: □ Sample order (1 set) □ Small batch (2-5 sets) □ Bulk (5+ sets)

Destination port: ______

We will reply within 24 hours with:

Best price (FOB/CIF)

Shipping cost to your port

Delivery time

Payment terms (T/T, L/C, etc
