Product Description

Opening Section

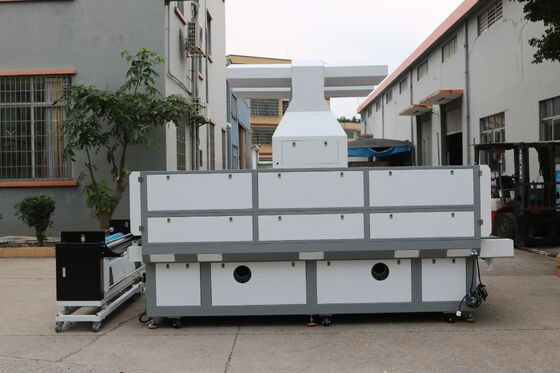

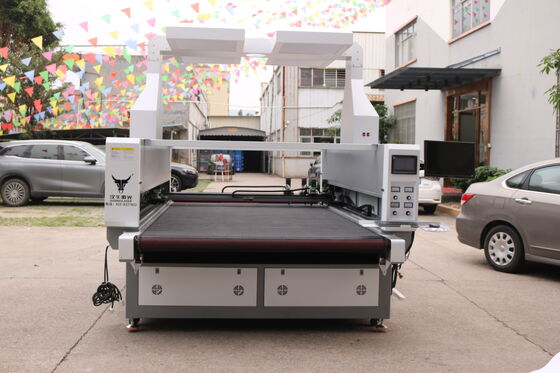

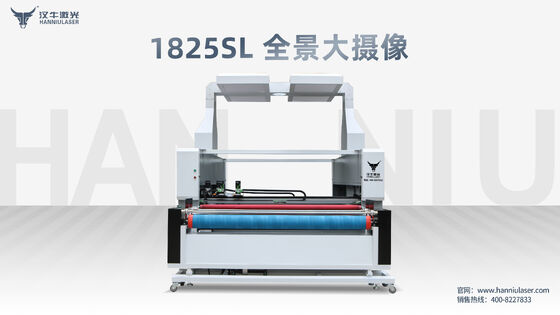

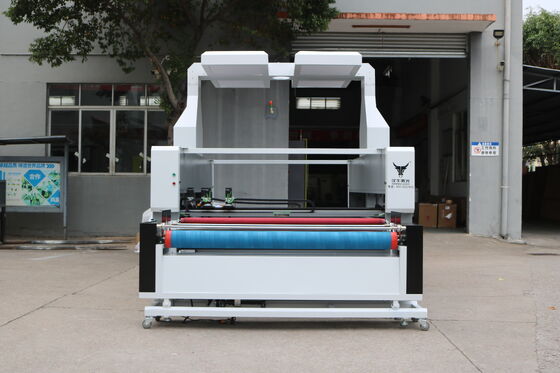

The Panoramic Vision CO₂ Laser Cutting Machine is an intelligent cutting solution designed specifically for processing printed fabrics, embroidery patches, and other textile materials that are prone to distortion. Equipped with a high-resolution DSLR panoramic camera and advanced visual recognition software, this system automatically captures the entire working area, identifies pattern contours, and compensates for material deformation in real time—ensuring precise cutting without manual alignment.

Unlike traditional laser cutters that require complex positioning marks, our panoramic vision system performs automatic edge tracking and contour extraction with a single scan. The result is faster setup, reduced material waste, and consistent cutting quality across large-format production runs.

Key Features

🔍 Panoramic Vision & Intelligent Recognition

• Equipped with a high-resolution SLR camera (18–24 megapixels) covering the entire large-format working area in one shot

• Automatic contour extraction and deformation matching—no manual alignment required

• Advanced visual recognition algorithm identifies printed patterns, embroidery edges, and irregular shapes with high precision

• Cutting accuracy up to ±0.01mm, ensuring clean and consistent results

⚡ CO₂ Laser Technology

• Sealed CO₂ laser tube with power options from 100W to 200W (up to 300W available)

• Laser-sealed edges—no fraying, no unraveling, no material deformation

• Suitable for cutting thickness up to 20mm (layered fabric)

• Cutting speed up to 2000mm/s, significantly improving production efficiency

🤖 Multi-Head & Automatic Feeding

• Dual-head asynchronous cutting system: two laser heads work independently on separate beams, allowing simultaneous cutting of different patterns—ideal for mixed layouts where multiple garment pieces (front, back, sleeves) are printed on the same fabric surface

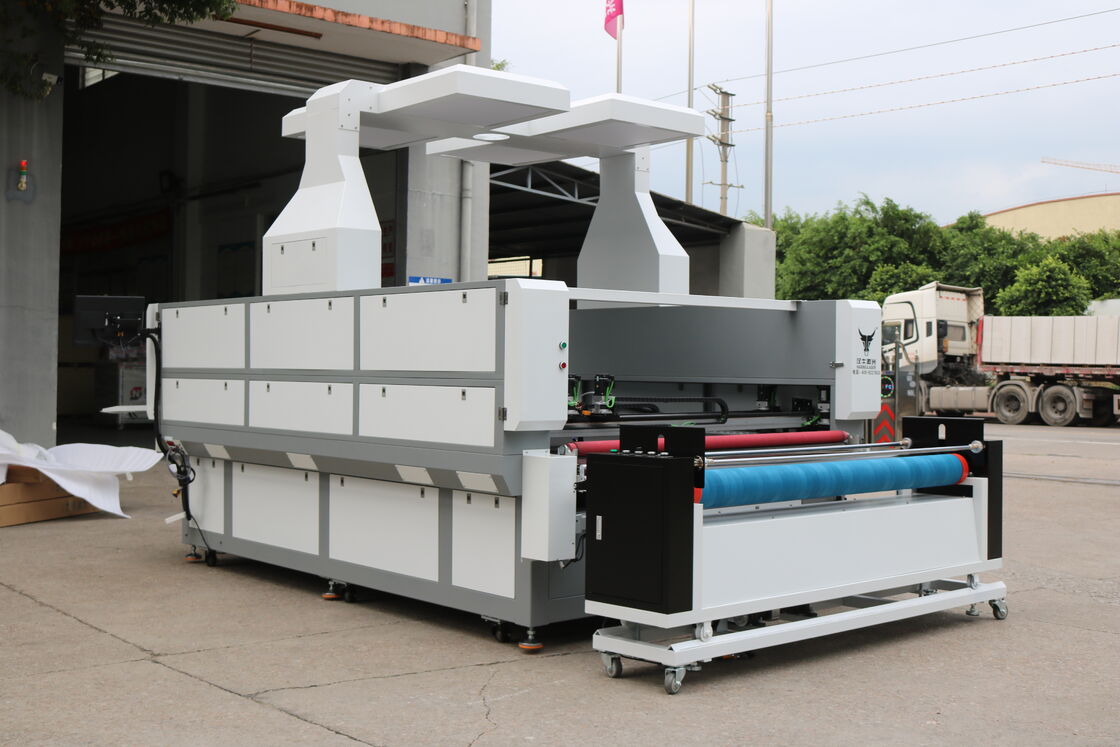

• Conveyor auto-feeding system with precise roll material feeding, increasing production efficiency by up to 30% compared to traditional models

• Supports single-head or dual-head configurations based on your production needs

📐 Large-Format & Customizable Working Area

• Standard working area options: 1600×1000mm, 1800×1000mm, 1800×1400mm, 1800×2500mm, 3300×1500mm

• Custom sizes available upon request, including 1.8m × 3.0m configurations

• Wide working area supports processing large sheets, rolls, or multi-piece layouts

Technical Specifications

Applications

🎯 Ideal for:

Why Choose This Machine?

• ✅ Eliminates Manual Alignment: Panoramic vision automatically identifies and corrects deformed patterns—saving time and reducing errors

• ✅ Clean, Fray-Free Edges: CO₂ laser technology seals fabric edges during cutting, preventing unraveling and eliminating the need for secondary trimming

• ✅ Higher Material Utilization: Intelligent nesting algorithm optimizes cutting paths to minimize waste

• ✅ Scalable Production: Auto-feeding system and multi-head configurations support both small-batch and high-volume production

• ✅ Easy Operation: Intuitive software interface supports multiple languages, with one-click processing for common tasks
