Fiber Laser Marking Machine
>
1064nm Fiber Laser Marking Machine 20w For Metal Materials 100×100mm

1064nm Fiber Laser Marking Machine 20w For Metal Materials 100×100mm

Brand Name: Hanniu laser
Model Number: ML
MOQ: 1 SET
Price: US$1,800-2,700
Packaging Details: Strong wooden case packing
Payment Terms: TT/LC/
Detail Information
Certification:
CE
Laser Power:
20W
Standard Marking Area:
100*100mm
Mode Of Operation:
Pulsed Continuous
Marking Software:
EZCAD From Beijing
Application:
Engraving And Marking
Fiber Laser Wavelength:
1064nm
Operate System Supported:
Win7, XP, Win10
Operation Temperature:
10~35°C
Name:
Fiber Laser Marking Machine
Supply Ability:
10 SETS
Highlight:

1064nm Fiber Laser Marking Machine

,

Fiber Laser Marking Machine 20w

,

Fiber Laser Marking Machine For Metal

Product Description

Fiber Laser Marking Machine Laser Power 20w For Metal Materials

Product Description:

Applicable materials: stainless steel, carbon steel, copper, iron, gold, aluminum alloy, silver, and other metal materials and some ceramic materials surface engraving.
Plastic: ABS plastic, PE plastic, PVC plastic products due to different components to the actual test.

Features:

1, high stability laser, long life, about 8-10 years, enough power, can work 24 hours.
2, marked environmental protection, permanent color, power saving, no consumables, low cost.
3, simple operation, high efficiency, the equipment is ready to use, simple and easy to learn.
4, through the 1080 short-wave laser directly gasification of the surface of the material, so as to show the required etching pattern text.
5, the heat affected area is very small, not easy to produce thermal reaction, material burning and other problems.
6, file support format: can directly open DST, DXF, PLT, AI and other vector formats, JPG, BMP and other image formats.

Technical Parameters:

Parameter Value
Model ML-20/30/50
Engraving Area 100×100mm
Linear Speed ≤7000mm/s
Average Power  ≤ 10 watts
Natural life of laser 3000hours
Laser wave length 1064nm
Marking speed (Roman font, word high-1mm) 250 characters / second 300 characters / sec
Marking the smallest characters 0.3mm -0.5mm
Resetting positioning accuracy ±0.01mm
Power Supply Ac220v±10%,50HZ,20A
Input power  <1800w
Operating Temperature 0-45°C
Operating humidity 5%-95%
Graphic Format Supported BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
Driver Type Stepper Motor
Cooling air cooling
Opearate System Win98/Win2000/WinXP
Packing wooden case
Net Weight 450kg
Dimension

1600×600×1100mm

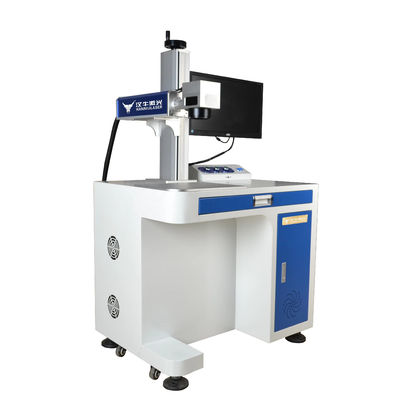

Machine Picture:

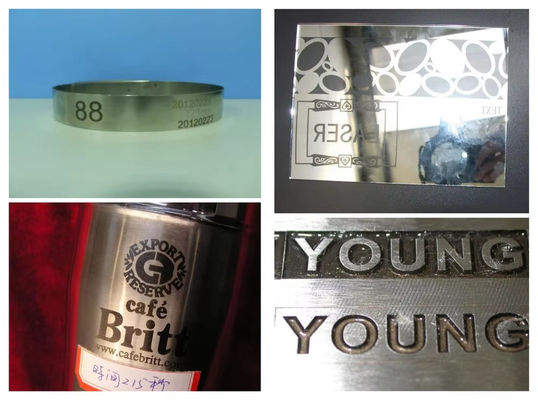

Samples:

1064nm Fiber Laser Marking Machine 20w For Metal Materials 100×100mm 1



Company and strength:

hanniu laser.jpg


Packing and Shipping:

10

FAQ:

1.Q: Are you a factory or trading company?
A:We are a professional manufacturer specializing in laser for about 10 years with export license.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Tanbu Town, Huadu District, Guangzhou, close to Baiyun Airport.

3.Q: Can you do OEM?
A: Yes, we can do OEM products as you requested.

4.Q: Where will the machines be shipped from?
A: It will be shipped from Huangpu Port Guangzhou,China. And We will find the shipping company which will offer best and most economical freight for our customers.

But If you have a preferred carrier,that will be more helpful for us.

5.Q:How does your factory do regarding quality control?
A:Quality is priority,we always attach great importance to quality control from the very beginning to the very end:
   1)All raw material we used are environmental-friendly;
   2)Skillful workers care every details in handling the producing and packing processes;
   3)Quality Control Department is specially responsible for quality checking in each process.
6.Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are legitimate certification company (VIP), and we support payment terms Like L/C,Escrow to ensure your money safety.

And we welcome you to visit our factory.
7.Q:There are too many models, I don't know which one to choose?
A: Welcome to contact us through Trade Manager,we will recommend most suitable machine according to your specific requirements.

8.Q:How to ensure that I received the machine undamaged?
A: Our package is standard for shipping, before packing,we will confirm product undamaged, otherwise, please contact us within 2 days.

Because we've bought insurance for you, we or shipping company will be responsible!
